Rm-50 Thermal Imaging Riflescope, Customizable With Rangefinder Function
Onick RM-50 infrared thermal imaging sight supports continuous stepless zoom, multiple imaging modes, and 32G image and video storage. Built-in rechargeable battery, ultra-long standby time of 8 hours.
€0
Product Details
Product Details
Onick RM-50 infrared thermal imaging sight supports continuous stepless zoom, multiple imaging modes, and 32G image and video storage. Built-in rechargeable battery, ultra-long standby time of 8 hours. Customizable laser ranging function, automatically coordinated with aiming reticle, to achieve fast and accurate shooting. Adopts joystick button design, flexible and easy to operate.
Product Features:
1. High-resolution OLED display: 1024 x 768 high-resolution OLED display provides a clear, rich contrast, vivid color image.
2. Picture-in-picture function: Picture-in-picture displays 2x image at the top center of the entire field of view for precise zooming on objects of interest.
3. Optional reticle: A complete digital reticle solution ensures fast target acquisition, select the style, color and brightness settings of the crosshairs.

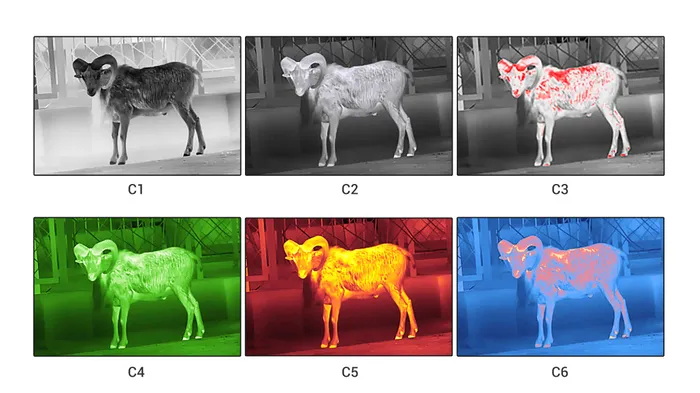

4. Multiple color palettes available
| Detector | |
| Type | Uncooled VOX |
| Resolution | 384x288 |
| Frame rate | 50Hz |
| Pixel size | 17μm |
| Band | 8-14μm |
| NETD | 30mk |
| Optical parameters | |
| Objective focal length | 50mm/F1.1 |
| Magnification of the whole machine | 3.8x |
| Field of view | 5.3°x 4° |
| Minimum imaging distance | 5m |
| Diopter | -5D-4D |
| Function | |
| Electronic zoom | 2x/4x/PIP |
| Color palette | 6 optional |
| Startup time | ≤5s |
| Menu and information | User interface |
| Image enhancement | DDE |
| Brightness and contrast | AGC |
| Online update |
Code and graphical user interface resources |
| Display | Display |
| Display type | OLED |
| Display resolution | 1024x768 |
| External video | wifi |
| Storage | 32G |
| Power supply | |
| Battery type | 2x18650 |
| External power supply | 5V Type-C |
| Working time with battery | 8h |
| Physical characteristics | Physical characteristics |
| Weight (without battery) | 650g |
| Dimensions | 196x76x83mm |
| Environmental adaptability | |
| Protection level | IP67 |
| Working temperature | with wifi-20℃-50℃ without wifi-40℃-60℃ |
| Storage temperature | -45℃-70℃ |
| Shock | 1200g, 1ms |
| Observation distance | |
| Rabbit (0.3m) | detection distance 625m, identification distance 208m |
| Wild boar (0.7m) | detection distance 1458m, identification distance 486m |
| Deer (1.7m) | detection distance 3541m, identification distance 1180m |
